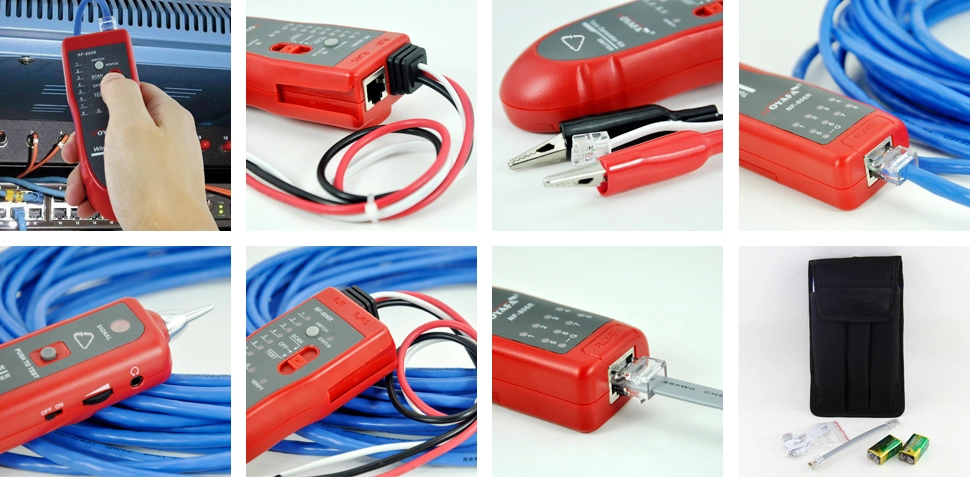

UTP STP Cat5 Cat6 RJ45 LAN Network Cable Tester Line Finder
Features:
1. Check and find the needed cables among so many cables in one time.
2. Continuity test — wiremap for Lan cables.
3. Diagnose the breakage, open, short, cross.
4. Visible indication: pin-to-pin cable map for individual cable (not by pairs).
5. Transmitter with RJ11 connector and pair of alligator clips.
6. Low Voltage alarm function.
7. Earphone permits use in noisy environments.
8. LED light assists use in dark corners.
| NF-806 Transmitter specifications | |||
| Tone frequency | 200Hz | ||
| Max. distance of transmission | Up to 2 kilometers | ||
| Max. working current | Less than 10mA | ||
| Volume Regulate Function | Audio volume level control | ||
| Tone mode | 2 Tones, adjustable | ||
| Compatible connectors | RJ45, cable clip with RJ11 connector | ||
| Max. signal voltage | 8Vp-p | ||
| LED lights display | Wiremap, tone, tracing | ||
| Voltage protection | AC 60V/DC 42V | ||
| Battery Type | DC9.0V(NEDA 1604/6F22) x 1pc | ||
| Dimensions (LxWxD) | 15 x 3.7 x 2cm | ||
| NF-806 Receiver specifications | |||
| Frequency | 200kHz | ||
| The Max. working current | Less than 30mA | ||
| Earphone jack | 1 | ||
| Battery Type | DC9.0V(NEDA 1604/6F22) x1pc | ||
| Dimensions (LxWxD) | 12.2 x 4.5 x 2.3cm | ||
Application:
1.Trace verify and locate RJ45 and RJ11 wires .
2.Earphone permits use in noisy environments.
3.LED light assists use in dark corners.
Pin-to-Pin Cable Map LAN Network Cable Tester
- Product Code: NF-806R
- Availability: In Stock
-
$46.99
